OLCR Optical Biometry with Automated Acquisition
The AL-VIEW Lite optical biometer uses optical low-coherence reflectometry (OLCR) to acquire multiple ocular measurements in one workstation workflow. The system provides automatic eye search, automatic focus, automatic measurement and automatic eye-position change functions to support repeatable operator steps.
Ten Reported Ocular Parameters
One measurement session can report axial length (AL), central corneal thickness (CCT), anterior chamber depth (ACD), lens thickness (LT), vitreous thickness (VT), corneal diopter (K), astigmatism (AST), white-to-white (WTW), pupil diameter (PD) and eccentric distance (CWC). These parameters should be interpreted by trained eye-care professionals in the context of the intended examination and applicable protocol.
Measurement Ranges
The axial-length range is 14-33 mm, with repeatability of 0.025 mm or less. The corneal-diopter range is 36.21-50.60 D, with repeatability of 0.13 D or less. White-to-white ranges from 7-16 mm, pupil diameter from 2-13 mm and AST from 0°-180°. Repeatability values are 0.3 mm or less for WTW and PD and 2° or less for AST. Anterior chamber depth (ACD) ranges from 0.7–11 mm with repeatability of 0.02 mm or less, and central corneal thickness (CCT) from 200–1200 μm with repeatability of 10 μm or less.
INTEGRATED WORKSTATION
From acquisition to review and printout
Bring measurement control, record review and local printing into a compact workstation workflow.
01 / BUILT-IN COMPUTING
Control the examination from one unit

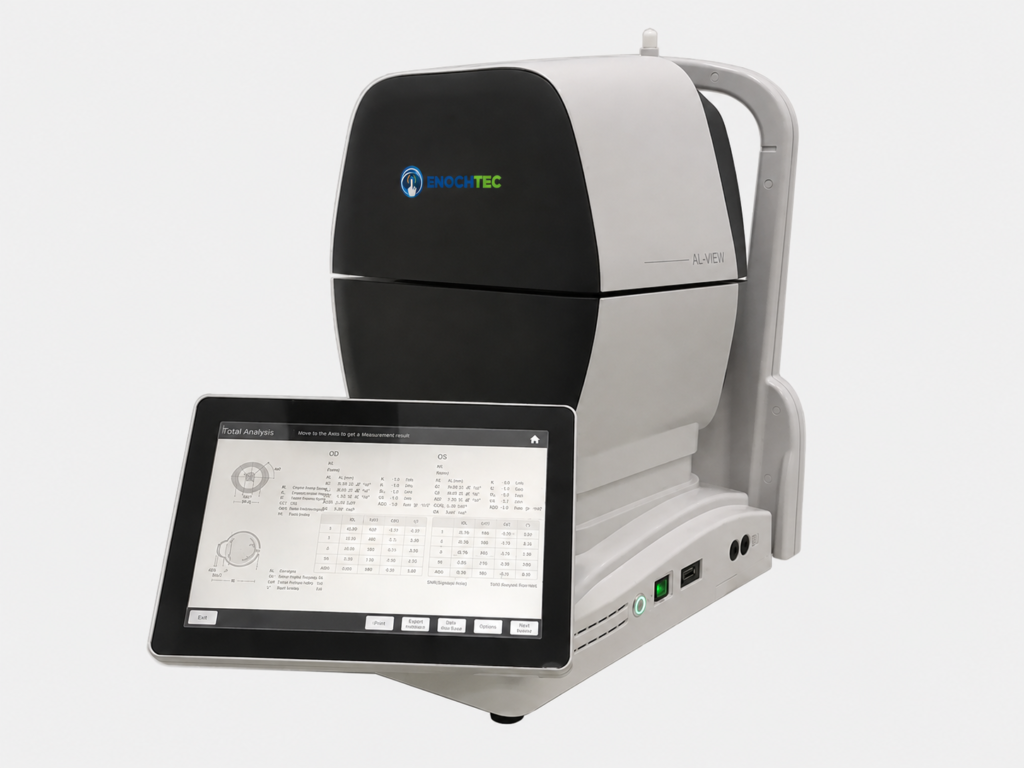

An integrated computer and touch display bring measurement control and result viewing together in the instrument. Confirm the supplied software and workstation configuration.
02 / LOCAL PRINTOUT
Print results at the instrument
A built-in thermal printer provides a local printout of measurement results. Confirm the included report format, paper supplies and final printer configuration.
03 / FOLLOW-UP REVIEW
Review biometric results over time
Biometric progression analysis is available with the corresponding software configuration. Confirm the supported report, database and comparison functions for the supplied version.
Configuration Planning
The instrument includes a display/control screen, but the exact supplied control hardware, software, export functions and accessories should be confirmed for the selected order. Rated voltage is AC 220 V at 50 Hz, with power consumption up to 220 VA. Confirm destination power compatibility, installation requirements, training and service scope in the approved quotation.
AL-VIEW Lite or AL-VIEW: Which Biometer?
ENOCHTEC also supplies the AL-VIEW, a related optical biometer in the same family. Both measure the eye without contact and run the measurement automatically: the instrument finds the eye, focuses and captures both eyes. Both have a built-in thermal printer for printing results at the instrument. They differ mainly in the number of parameters reported and in the reports they produce.
| Item | AL-VIEW Lite | AL-VIEW |
|---|---|---|
| Measurement | Non-contact OLCR optical biometry | Non-contact optical biometry |
| Parameters per measurement | 10: AL, CCT, ACD, LT, VT, K, AST, WTW, PD and CWC | 8 parameter groups |
| Operation | Automatic eye search, focus, measurement and eye change | One-touch automatic alignment, focus and both-eye capture, no joystick |
| Printer | Built-in thermal printer | Built-in thermal printer |
| Reports | Myopia analysis report with reference data; progression analysis with the corresponding software | Biometric progression analysis for follow-up visits |
- Choose the AL-VIEW Lite for myopia screening and management programmes that need the full 10-parameter report, including white-to-white, pupil diameter and eccentric distance, and fast, high-volume measurement.
- Choose the AL-VIEW when the 8 core parameter groups cover your routine needs and you want a compact all-in-one unit for clinic follow-up of axial-length change.
Confirm the supplied software, report format and accessories for either model in the approved quotation.
For eyes that optical biometry cannot measure, such as dense cataracts, the MD-1000A/P ultrasonic A-scan biometer provides contact or immersion axial-length measurement.
AL-VIEW Lite Frequently Asked Questions
Which measurement principle does AL-VIEW Lite use?
AL-VIEW Lite uses optical low-coherence reflectometry, or OLCR, as the measurement principle.
Which parameters can the system report?
The system reports AL, CCT, ACD, LT, VT, K, AST, WTW, PD and CWC. Available reports, database functions and export formats should be confirmed for the selected software configuration.
What is the axial-length range?
The axial-length range is 14-33 mm, with repeatability of 0.025 mm or less.
Does the system automate acquisition steps?
The system provides automatic eye search, focus, measurement and eye-position change functions. The instrument remains intended for trained professional operation under the approved instructions for use.
