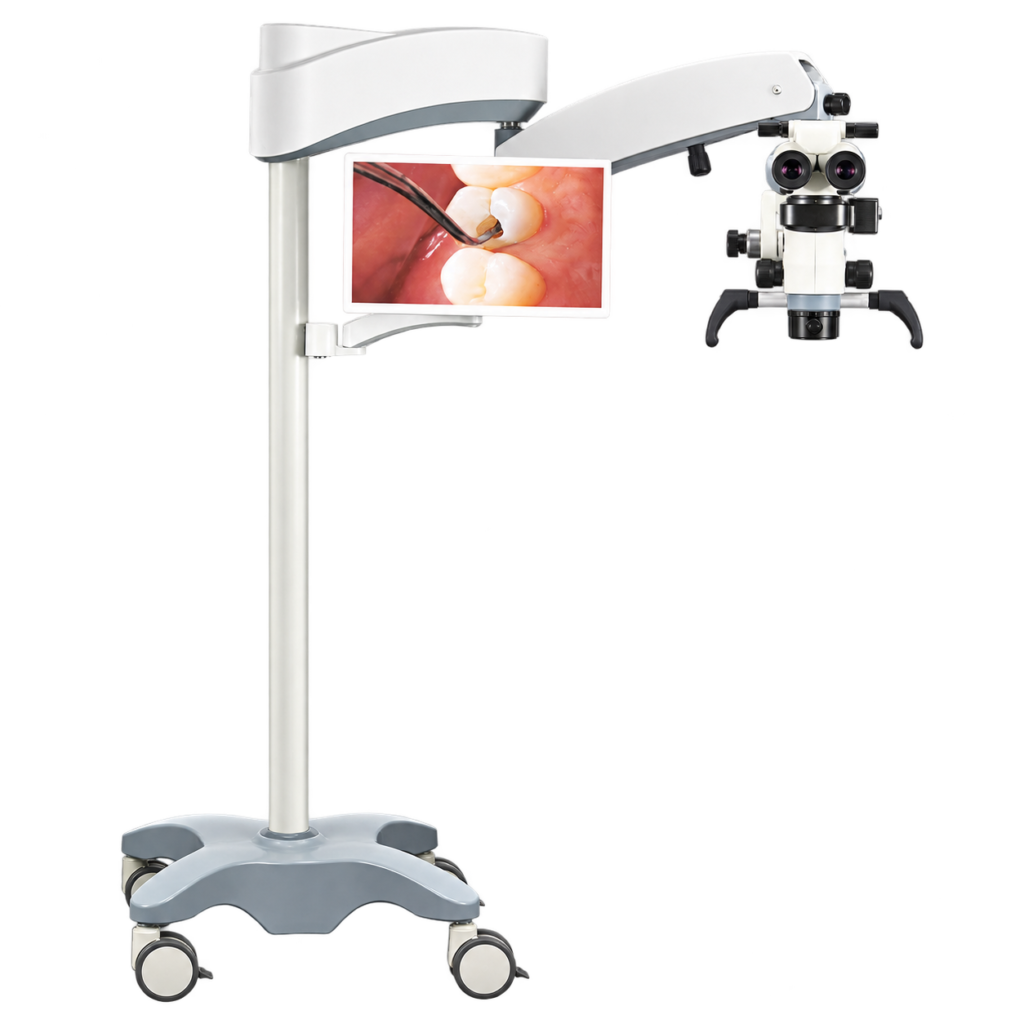

EM-300 floor-standing surgical microscope with illustrative display configuration
ENOCHTEC · PROFESSIONAL EYE-CARE EQUIPMENT

EM-300 Surgical Microscope for Neurosurgery and ENT

Model

EM-300

A floor-standing surgical microscope with manual continuous zoom, a balanced arm and configurable observation and imaging options for neurosurgery and ENT.
Get a Quote
View All Products

Need help selecting a configuration?
Tell us your market, clinical workflow and project requirements.

EM-300 floor-standing surgical microscope with illustrative display configuration
Product Highlights

Key Features

Manual continuous zoom · 3.36–20.8× with 10× eyepieces · 0–180° foldable binocular tube · LED illumination · balanced cantilever arm
Clinical Use

Applications

Microsurgical observation in neurosurgery and ENT.
DESIGNED FOR SURGICAL WORKFLOWS

Clear observation, configurable for your team.

The EM-300 supports microsurgical observation in neurosurgery and ENT. Choose the viewing and imaging configuration around your clinical workflow and project requirements.

Continuous manual zoom

Adjust magnification manually as the procedure moves between an overall view and finer detail. The brochure specifies 3.36–20.8× with 10× eyepieces.

Adjustable viewing

A foldable binocular tube adjusts from 0° to 180°. Optional assistant or opposing observation configurations support shared viewing.

Balanced positioning

A floor stand and balanced cantilever arm position the microscope around the operating area. LED illumination supports the viewing workflow.

CONFIGURE YOUR SYSTEM

Choose the observation and video options you need.

Select the microscope configuration for your surgical team. The brochure describes optional camera and video interfaces, as well as additional observation arrangements.

The monitor shown in the image illustrates a possible configuration. Camera, screen and assistant microscope inclusion must be confirmed for the quotation.

Assistant and opposing observation

Additional observation configurations can be discussed for training or team workflows. Confirm the available options and magnification.

Video and display

Optional camera and video interfaces can support visual documentation and shared viewing. Confirm camera, display and connection specifications.

VIEW THE SYSTEM

Observation and configuration details.

Illustrative views of the microscope head and optional observation arrangements. Confirm the components supplied with your selected configuration.

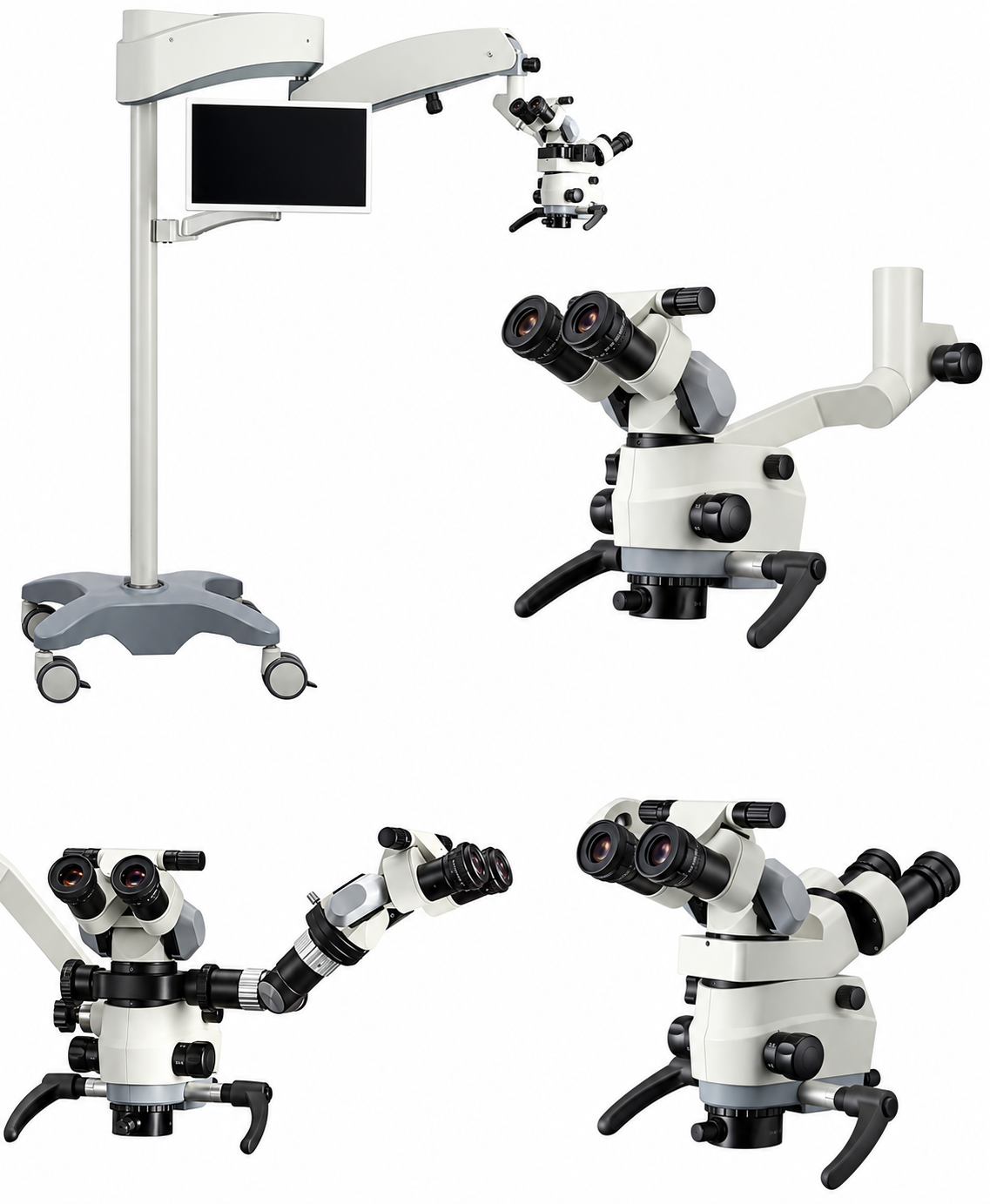

Illustrative microscope and additional observer configurations
Illustrative configurations; assistant and opposing observers are optional.

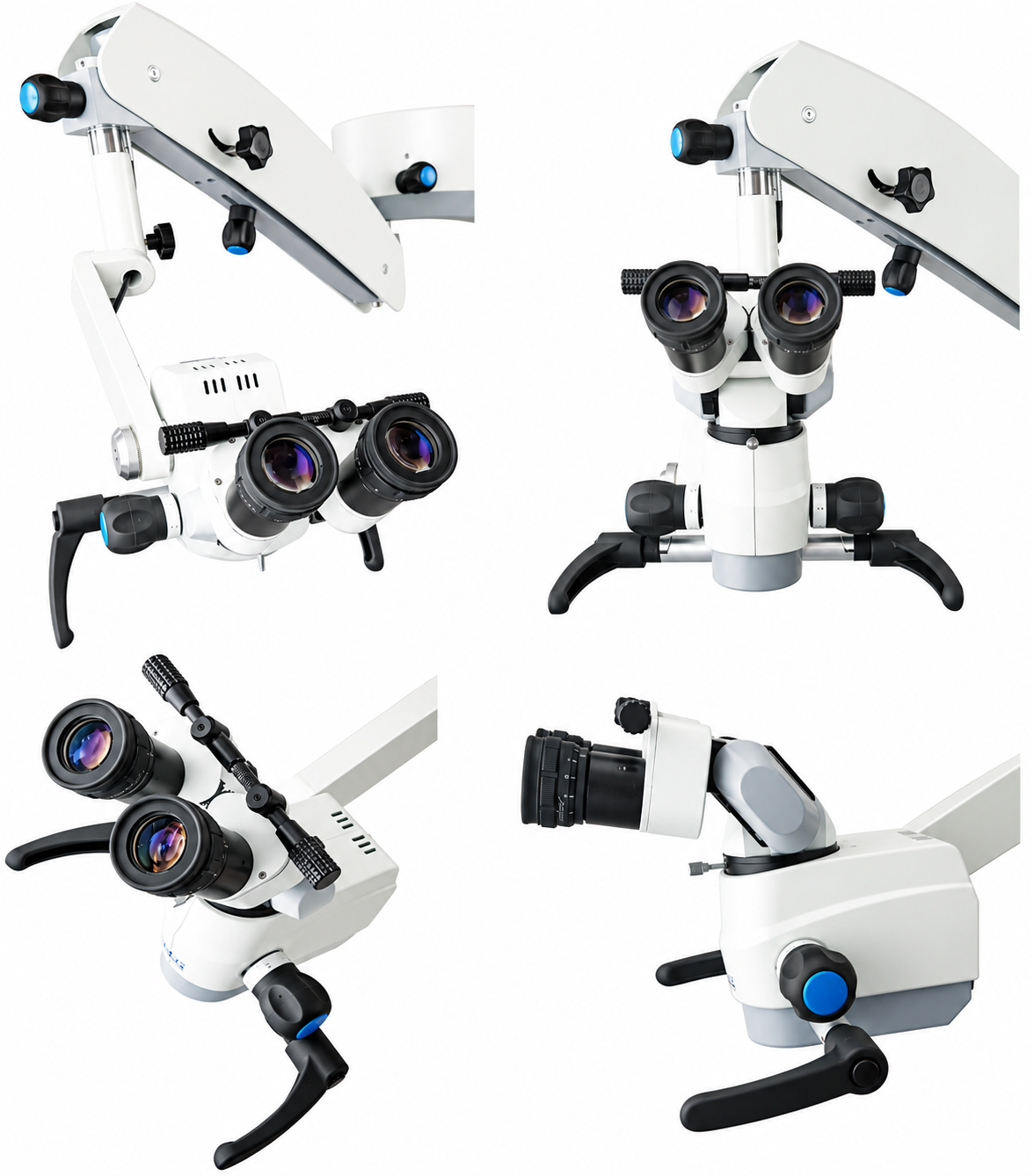

Illustrative views of microscope binocular head and controls
Illustrative optical head details. Actual equipment may vary.
Project Fit

Configurations & Options

Discuss assistant or opposing observation, camera, video interface and display options for your project. Confirm the objective and working distance for your chosen configuration.

Final configurations, accessories and documentation are confirmed according to market and project requirements.

Technical Specifications

Eyepieces 10× / 12.5×
Binocular tube 0–180° foldable
Diopter adjustment +5 D to −8 D
Zoom Manual continuous
Magnification 3.36–20.8× with 10× eyepieces
Working distance 200–500 mm adjustable; 250 mm listed in brochure
Focus range 12 mm as listed in brochure
Stand Floor stand with balanced cantilever
Illumination LED, 3.3 V / 30 W
Power input 100–240 V AC
Power output 12 V / 6.3 A
Video interface Type C threaded interface as listed

Confirm the objective, working distance and included equipment for the selected configuration.



Discuss This Product with ENOCHTEC

Request specifications, configuration guidance or a distributor quotation for your market.

Request a Quote

Product Questions & Buying Guidance

Practical answers for clinics, hospitals, distributors and project buyers evaluating this product. Final configurations are confirmed for the destination market and intended workflow.

What information is needed for an accurate quotation?

Please share the destination country, intended clinical use, expected quantity, preferred configuration, local power standard and any required regulatory or tender documents. This lets ENOCHTEC prepare the most relevant technical and commercial proposal.

Yes. Available accessories, interface options, language, power standard, documentation and room integration can be reviewed for the destination market. Any change remains subject to the selected model, order quantity and regulatory requirements.

ENOCHTEC can support model selection, portfolio planning, technical documentation, product positioning and after-sales coordination for distributor and project orders. Training scope and service arrangements are confirmed according to the product and market.
