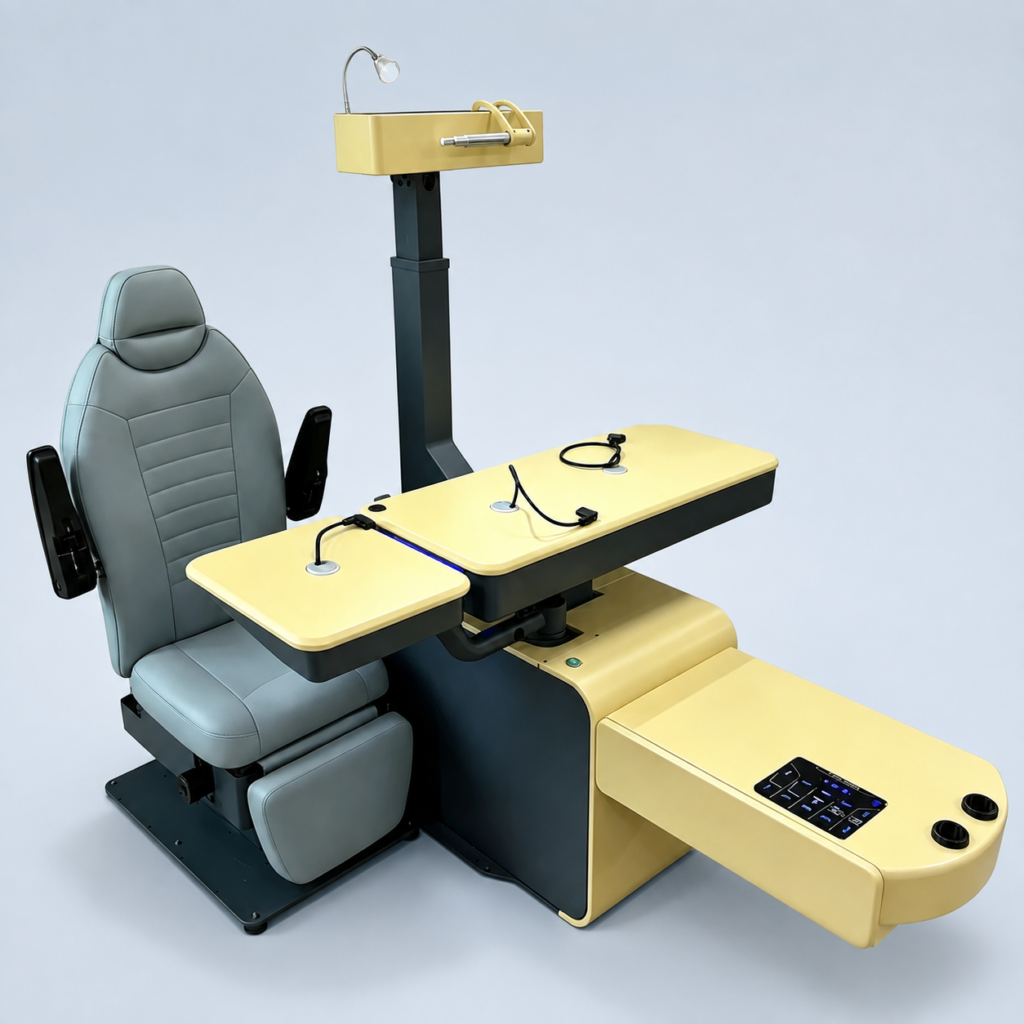

AST-3000 Fully Automatic Optometry Unit for Advanced Refraction Rooms
The AST-3000 fully automatic optometry unit combines a powered patient chair, motorized instrument arm, electrically adjustable worktable and rotating auxiliary table in one coordinated workstation. It is designed for optometry practices, ophthalmology clinics, hospitals and optical centers building an efficient, professional refraction room.
Motorized Workstation Features
- Low-noise electric chair lift with powered reclining adjustment.
- Retractable instrument arm with 150 mm vertical and 400 mm horizontal travel.
- Motorized worktable with 180 mm height adjustment and 670 mm sliding travel.
- Three-position tabletop arrangement with a rotating auxiliary table.
- Touch-sensitive control panel for centralized workstation operation.
- Integrated drawer and examination lamp for an organized clinical workspace.
Designed Around the Refraction Workflow
The AST-3000 helps position the patient and multiple instruments within one working area. The movable arm and table can support transitions between objective refraction, subjective refraction and visual-acuity testing while reducing the need to rearrange equipment during each examination.
Room Planning and Installation
The workstation footprint and sliding range should be checked against the available room before ordering. Allow adequate space for patient access, operator movement, chair recline and the table’s extended position. Door width, electrical outlet placement and the dimensions of the intended instruments should also be confirmed.
AST-3000 or AST1000?
The AST-3000 is retained as a separate model rather than replacing the AST1000. Its physical arrangement, overall dimensions and 670 mm worktable travel provide another layout option for buyers comparing complete optometry workstations. ENOCHTEC can recommend the more suitable model after reviewing the room and instrument list.
What Should Buyers Confirm?
Before quotation, confirm the room dimensions, preferred upholstery color, instrument models, arm arrangement, local voltage and installation access. Final dimensions, finishes and configuration details are verified against the approved order because product design details may be updated.
