OCT-500 Spectral-Domain OCT System

Model

OCT-500

The OCT-500 spectral-domain OCT system combines 24,000–36,000 A-scans/s, a 6–12 mm scan range, 13.3-inch touch operation and macular, RNFL, optic-disc and follow-up analysis workflows.

Need help selecting a configuration?
Tell us your market, clinical workflow and project requirements.

Product Highlights

Key Features

OCT-500 spectral-domain OCT; smart pupil alignment and signal optimization; 24,000–36,000 A-scans/s; 3D, HD, raster, circle and cross modes; retinal-layer, macular, RNFL, optic-disc and progress analysis workflows.

Clinical Use

Applications

Retinal image acquisition and professional review workflows in ophthalmology clinics and hospitals. Analysis labels are not presented as autonomous diagnosis or disease-screening claims.

OCT-500 Spectral-Domain OCT Imaging

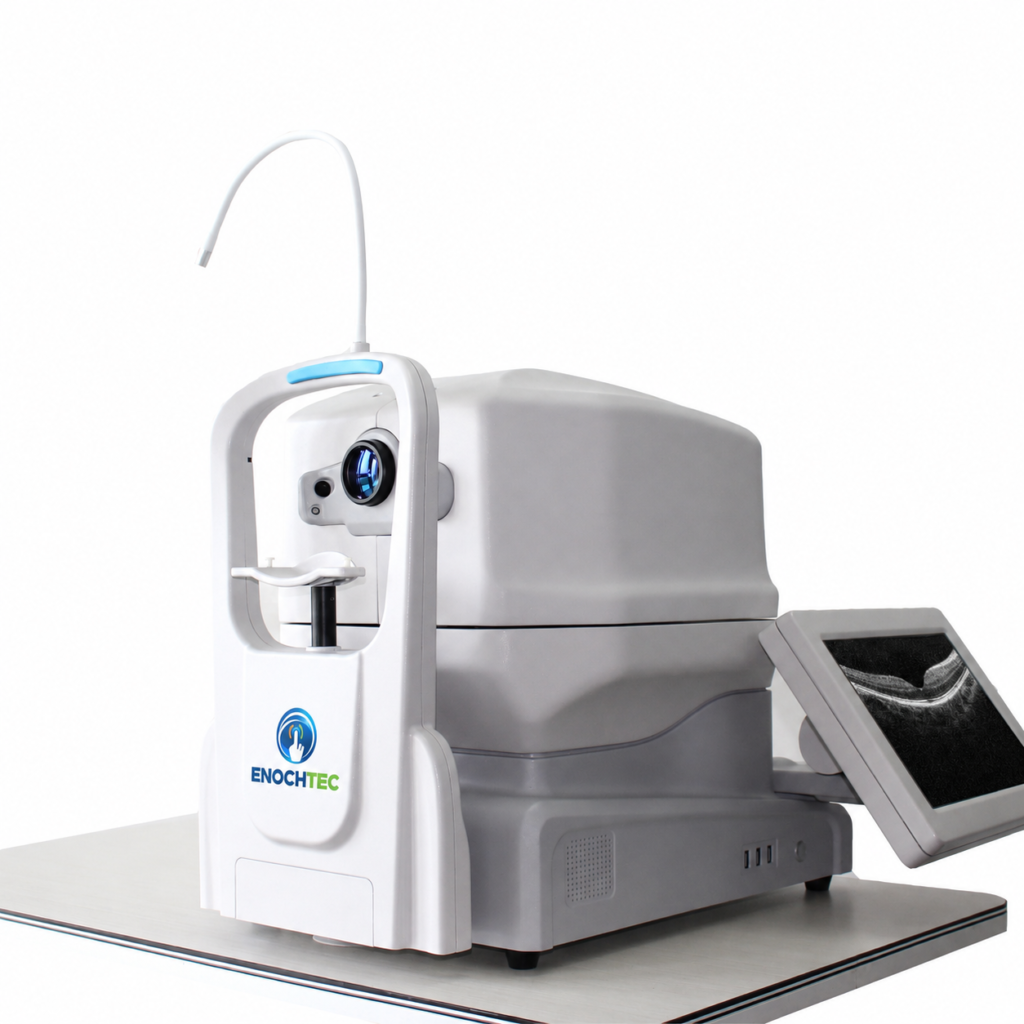

The OCT-500 spectral-domain OCT system combines image acquisition, touch-screen operation and retinal analysis workflows in an all-in-one tabletop format.

Scan Performance

The system provides an axial resolution of ≤6 μm in tissue, a scan depth of ≥2.5 mm in air, a 6–12 mm scan range and a scan speed from at least 24,000 to as high as 36,000 A-scans per second. Scan modes include 3D for macular and optic-disc acquisition, HD, raster, circle and cross.

Acquisition and Analysis Workflow

Smart pupil alignment and signal optimization support the acquisition sequence. The software scope includes OCT en-face viewing, up to seven retinal-layer segmentations, macular analysis, RNFL and optic-disc analysis, and progress analysis for follow-up examinations. These are software workflow descriptions, not claims of autonomous diagnosis, disease screening or a guaranteed clinical result.

Display and Installation

Operation is via a 13.3-inch touch screen, with an optional external mouse or keyboard. The system uses an all-in-one arrangement and supports an optional larger external monitor. Power input is 100–240 V at 50/60 Hz. The unit dimensions are 497 × 395 × 490 mm and the weight is 34 kg.

Configuration and Supply Checks

Before quotation, confirm the software version, standard computer and display arrangement, table, accessories, data interfaces, documentation language, legal manufacturer and regulatory scope for the destination market. OCT angiography and anterior-segment imaging are not standard OCT-500 functions.

OCT-500 Frequently Asked Questions

What is the scan speed?

The system performs at least 24,000 A-scans per second and up to 36,000 A-scans per second.

What analysis workflows are shown?

The system provides retinal-layer segmentation, macular, RNFL and optic-disc analysis, plus progress analysis for follow-up review.

What is the model number?

The model designation is OCT-500.

Review more ophthalmic diagnostic equipment, or contact ENOCHTEC to confirm the software, accessories and supply scope for your market.

Project Fit

Configurations & Options

Confirm the software version, legal manufacturer, display/computer arrangement, accessories, interfaces, documentation and destination-market regulatory scope before quotation. External mouse, keyboard and larger monitor are optional.

Final configurations, accessories and documentation are confirmed according to market and project requirements.

Technical Specifications

Model	OCT-500
Methodology	Spectral-domain OCT
Axial resolution	≤6 μm in tissue
Scan depth	≥2.5 mm in air
Scan range	6–12 mm
Scan speed	≥24,000 A-scans/s; up to 36,000 A-scans/s
Scan modes	3D (macular and optic disc), HD, raster, circle and cross
Analysis workflows	Up to seven retinal layers; macular; RNFL and optic disc; progress analysis
Fundus image	OCT en face
Focus adjustment	−15 D to +15 D
Minimum pupil diameter	≥3 mm
OCT light source	840 nm SLD
Display	13.3-inch touch screen
Optional controls	External mouse / keyboard
Power	100–240 V, 50/60 Hz
Dimensions / weight	497 × 395 × 490 mm / 34 kg

Discuss This Product with ENOCHTEC

Request specifications, configuration guidance or a distributor quotation for your market.

Product Questions & Buying Guidance

Practical answers for clinics, hospitals, distributors and project buyers evaluating this product. Final configurations are confirmed for the destination market and intended workflow.

What information is needed for an accurate quotation?

Please share the destination country, intended clinical use, expected quantity, preferred configuration, local power standard and any required regulatory or tender documents. This lets ENOCHTEC prepare the most relevant technical and commercial proposal.

Can the configuration be adapted to local market requirements?

Yes. Available accessories, interface options, language, power standard, documentation and room integration can be reviewed for the destination market. Any change remains subject to the selected model, order quantity and regulatory requirements.

What support is available for distributors and project buyers?

ENOCHTEC can support model selection, portfolio planning, technical documentation, product positioning and after-sales coordination for distributor and project orders. Training scope and service arrangements are confirmed according to the product and market.
