ACP-300 Digital Vision Chart for Refraction Rooms
The ENOCHTEC ACP-300 digital vision chart combines a 21.5-inch Full HD LCD with vector optotypes and a broad clinical chart library for visual-acuity testing and refraction-room workflows. Its frameless design supports wall-mounted or desktop installation in optometry practices, ophthalmology clinics and optical centers. For buyers comparing a digital vision chart with an electronic eye chart, the ACP-300 combines clinical chart selection, flexible display settings and connected control in one system.
Full HD Vector Optotypes

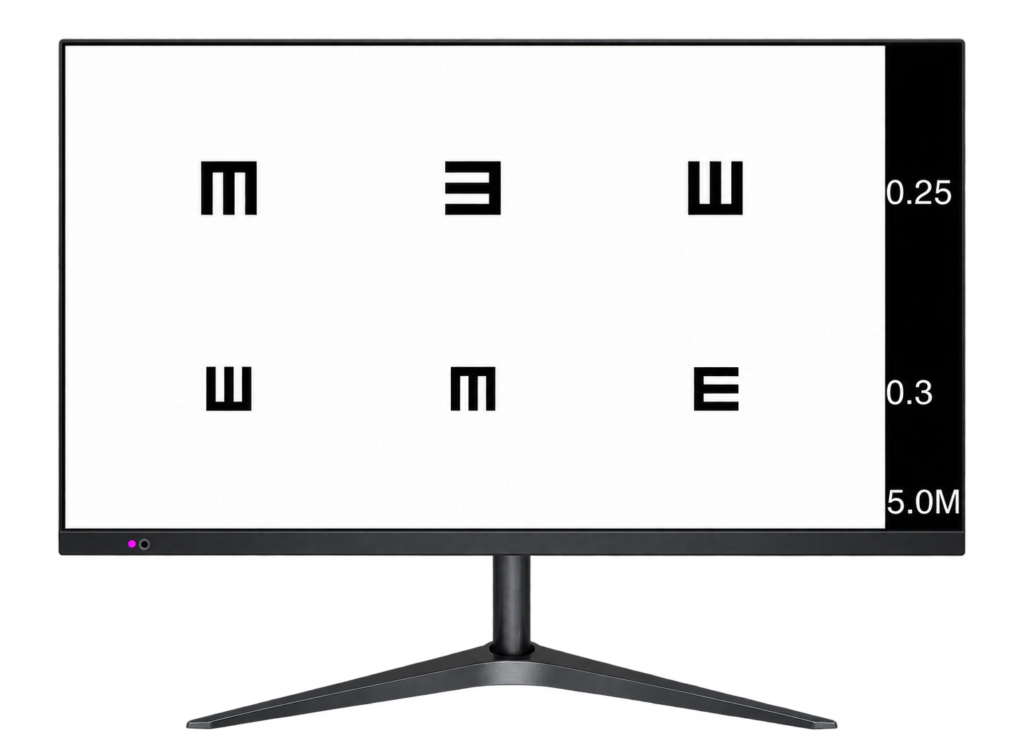

The 1920 × 1080 display presents scalable vector charts with smooth edges. Standard optotypes include Tumbling E, Landolt C, alphabet, numbers and children’s symbols. Operators can select single, horizontal or vertical presentation and use randomized optotype sequences to reduce memorization.
Flexible Test Distance and Visual Units
The documented working distance is adjustable from 2 to 6.5 metres in 0.1-metre steps. A mirror configuration can support rooms with an effective test distance of 1 metre. Available recording formats include decimal, Snellen metres, Snellen feet and five-grade notation, helping practices adapt the chart to regional clinical conventions.
Clinical and Functional Chart Library

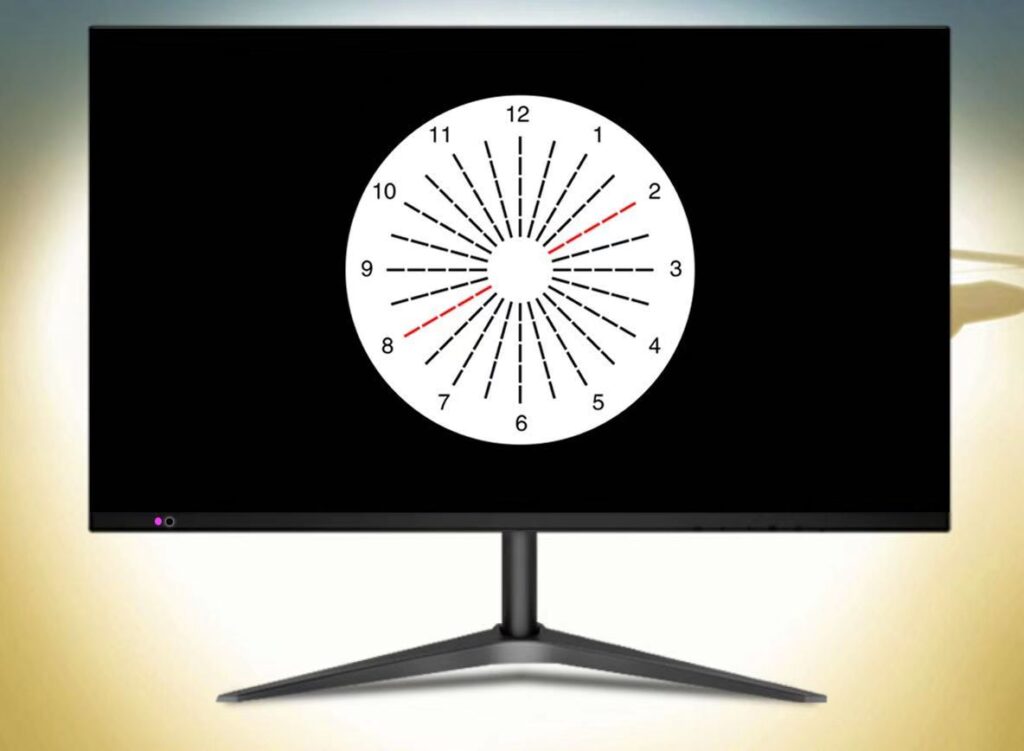

In addition to routine acuity charts, the ACP-300 visual acuity chart system includes functional tests for common refraction and binocular-vision workflows. Available charts include ETDRS, red-and-green balance, astigmatic fan, fixation targets, contrast testing, cross-polarization and other binocular-vision patterns. Exact chart availability should be confirmed for the selected software version.
- Adjustable chart and background brightness.
- Black-on-white and white-on-black presentation.
- Adjustable red-and-green mask colours.
- Random chart presentation and programmable chart sequences.
- USB software upgrade support.
Remote and Connected Control
A 60-key infrared remote controller supports routine chart selection. The system also documents Bluetooth control through an Android application and an RS-232 interface for integration with compatible automatic phoropters. App, operating-system and phoropter compatibility must be confirmed before ordering.
Installation and Project Configuration
The documented standard accessory list includes an infrared remote controller, wall bracket, red/green glasses and power adapter. A tabletop stand is documented as optional; final included items must follow the approved quotation. Before quotation, confirm the intended installation method, room distance, mirror requirement, interface language, visual-acuity notation, local plug, automatic-phoropter model and destination-market documentation. Explore other ophthalmic and optometry equipment or contact ENOCHTEC for project configuration guidance.
The ACP-300 is intended for use by trained eye-care personnel as part of a suitable examination workflow. Chart results do not replace professional clinical judgment or a comprehensive eye examination.
Frequently Asked Questions
What Working Distance Does the ACP-300 Support?
The standard documented range is 2 to 6.5 metres. A mirror arrangement can provide an effective 1-metre setup for compact rooms.
Which Optotypes Are Available?
The system includes Tumbling E, Landolt C, alphabet, numbers and children’s symbols, together with functional charts for refraction and binocular-vision assessment.
Can It Connect to an Automatic Phoropter?
An RS-232 control interface is documented for compatible automatic-phoropter integration. Confirm the phoropter model and communication protocol before ordering.
Can the Chart Be Controlled from a Phone?
Bluetooth control through an Android application is documented. Confirm current application availability and device compatibility for the destination market.
