Product highlights
Manual zoom.
Focus at your feet.
Two optical choices with the same core magnification, field of view and focusing controls. Select the optical package that fits your requirements.
4–20× continuous zoom
Turn the rotary knob to move continuously between a wider view and closer detail. Both optical configurations offer an 8–65 mm field of view.

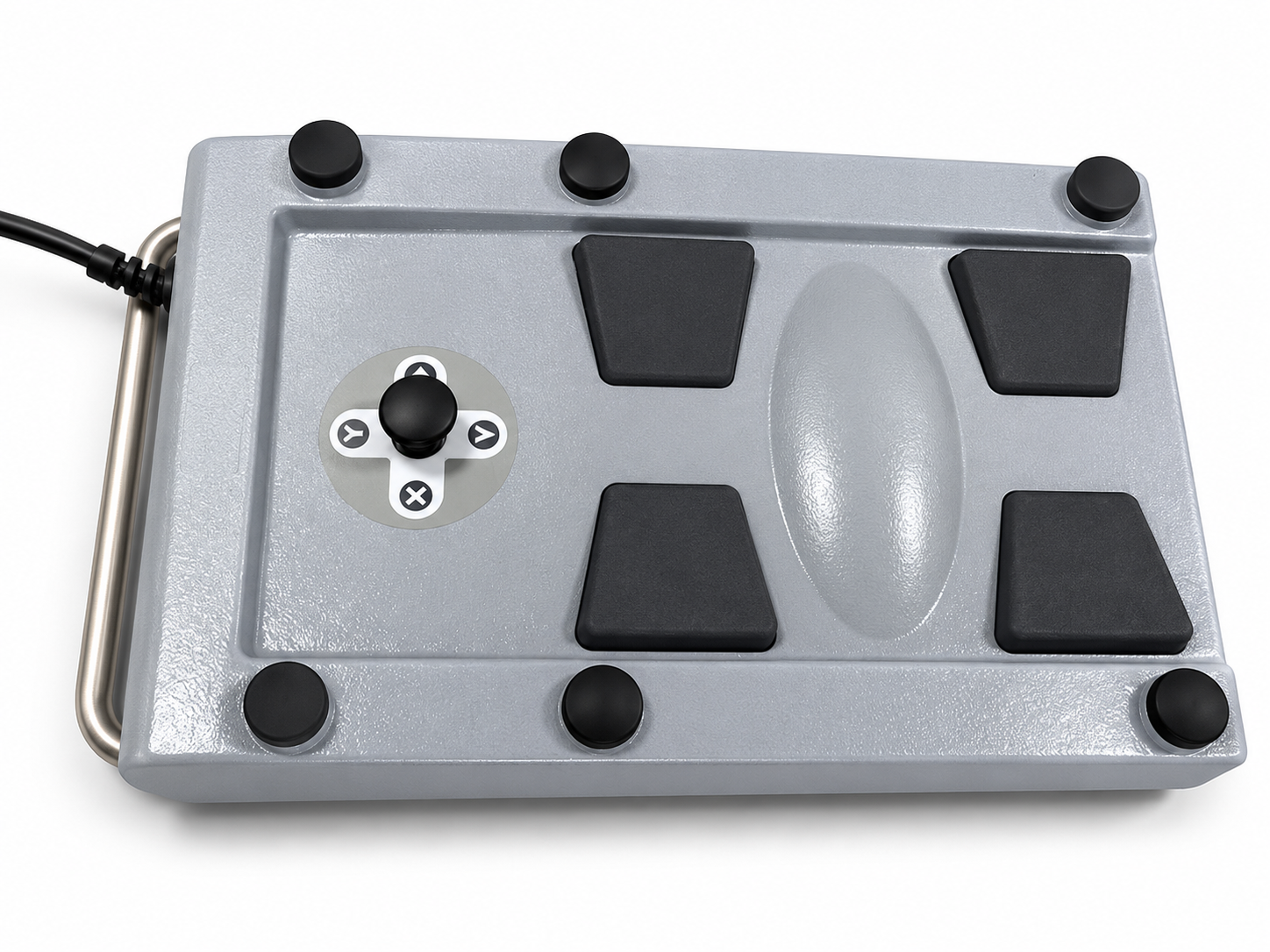

Foot-controlled focusing
Make motorized focus adjustments from the foot pedal, with ±20 mm of travel—40 mm in total. Zoom remains manually controlled.
An assistant view included
A 7× assistant microscope is included with both the standard and OLYMPUS SZX51 configurations, providing a separate observation position.
A closer look
Choose your optics.
Keep the controls straightforward.
Manual magnification adjustment and foot-controlled motorized focusing serve different tasks, with an assistant microscope included in either package.

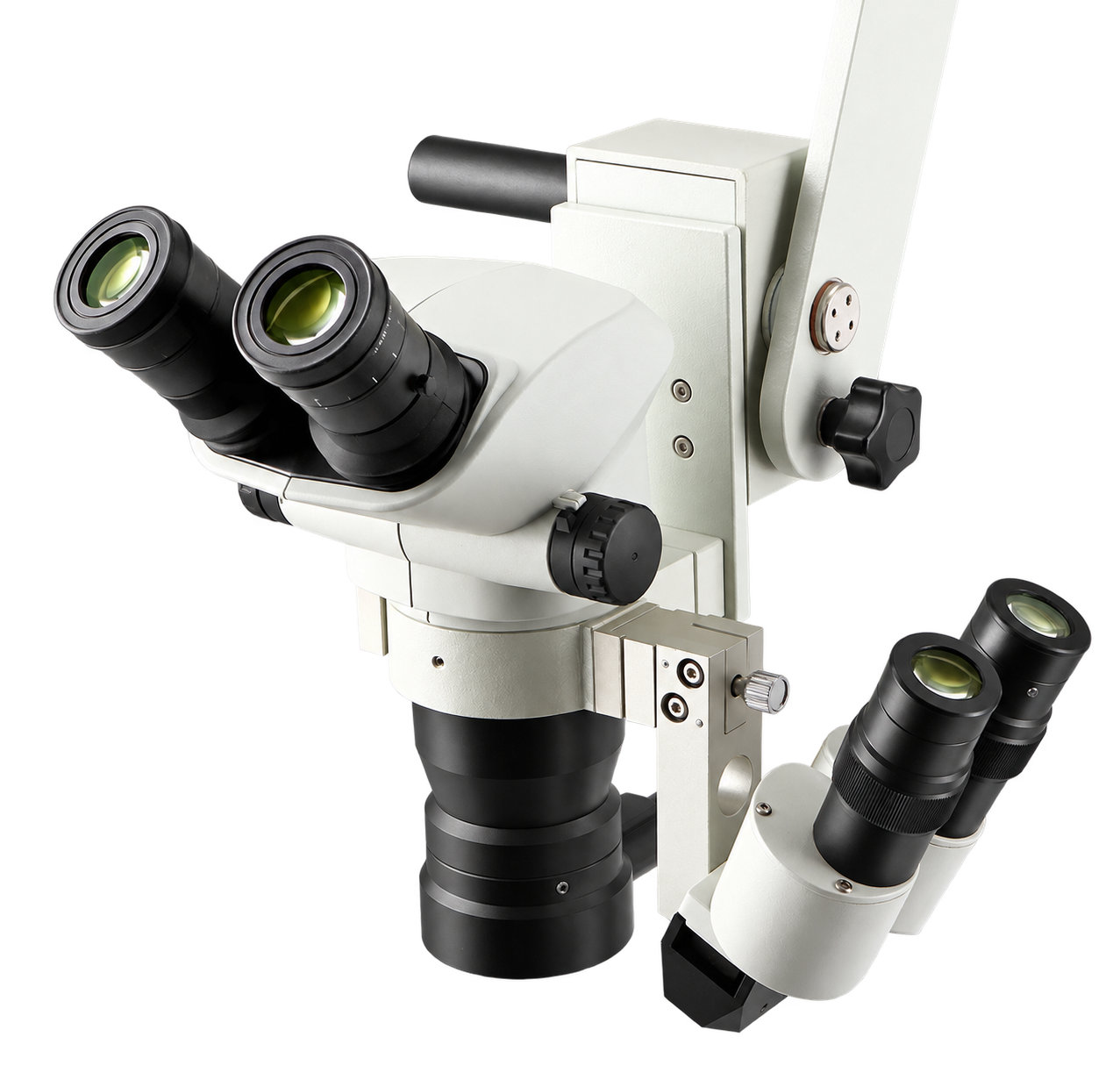

Optics & observation
A choice of optics.
A shared viewing range.
Specify standard optics or the OLYMPUS SZX51 optical system. Both provide 4–20× manual continuous magnification and an 8–65 mm field of view, with an included 7× assistant microscope.
The OLYMPUS SZX51 configuration also specifies 10× wide-angle eyepieces, a 30° observation angle, 50–76 mm interpupillary adjustment and ±5 D diopter adjustment.
Motorized focusing
Fine focus,
controlled by foot.
Refine focus without moving your hands to the focusing control. The pedal provides motorized focusing through ±20 mm of travel, for a total range of 40 mm.
Use the rotary knob for continuous manual zoom. The foot pedal is dedicated to focusing, so its function stays consistent across both optical packages.
Your optical configuration
Two optical
configurations.
Both packages include 4–20× manual continuous zoom, an 8–65 mm field of view, a 7× assistant microscope and foot-controlled motorized focusing.
Standard optical configuration
The standard optical package combines manual continuous zoom with an included assistant microscope and foot-controlled motorized focusing. Ask for the illumination and stand specification for this package with your quotation.
- 4–20× manual zoom · 8–65 mm field of view
- 7× assistant microscope included
- Foot-controlled focus · ±20 mm travel
OLYMPUS SZX51 optical configuration
The OLYMPUS SZX51 package pairs the shared zoom and focusing controls with 10× wide-angle eyepieces, a 30° observation angle and fiber-optic LED illumination. See the dedicated OLYMPUS SZX51 specifications below.
- 4–20× manual zoom · 7× assistant included
- 60 W LED · stepless brightness adjustment
- Illuminance ≥60,000 lux · foot-controlled focus
Detailed illumination, viewing-head and stand specifications below apply to the OLYMPUS SZX51 package. For the standard package, request its configuration sheet with your quotation.
