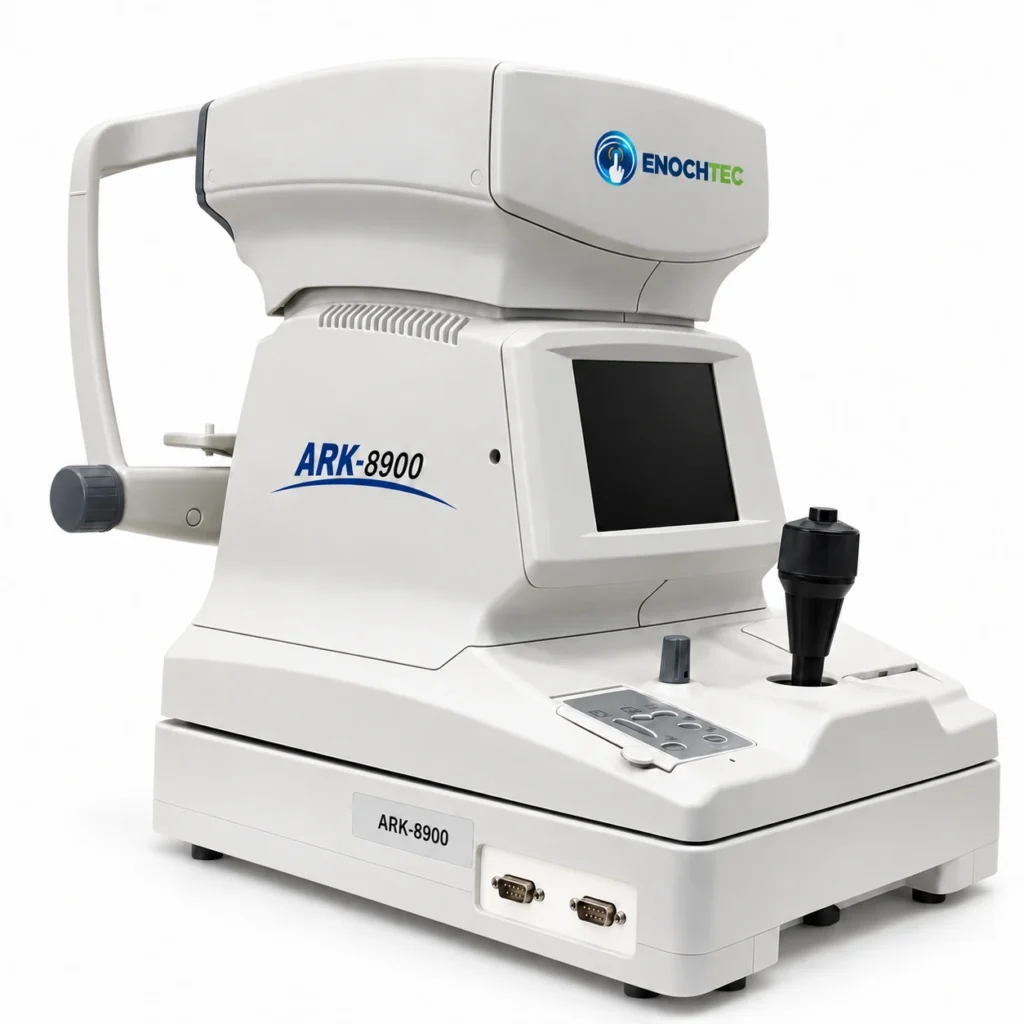

ENOCHTEC ARK-8900
ENOCHTEC · PROFESSIONAL EYE-CARE EQUIPMENT

ARK-8900 Auto Refractor Keratometer

Model

ARK-8900

Joystick alignment. Physical controls. A clear 5.7-inch color display. The ARK-8900 combines objective refraction and corneal curvature measurement with joystick alignment, physical controls and a 5.7-inch TFT color display. R&K, REF, KRT and CLBC modes support refraction, keratometry and contact lens base-curve measurement.
Get a Quote
View All Products

Need help selecting a configuration?
Tell us your market, clinical workflow and project requirements.

ENOCHTEC ARK-8900
Product Highlights

Key Features

  • Joystick alignment with automatic capture
  • One Instrument, Four Measurement Modes — R&K / REF / KRT / CLBC
  • 5.7-inch TFT color LCD
  • Direct access through physical buttons
  • Built-in thermal printer
Clinical Use

Applications

Objective refraction and corneal curvature measurement in optical practices, optometry clinics and eye-care departments. Examination results require professional interpretation.

One Instrument, Four Measurement Modes

Select the measurement mode from the control panel to suit the examination sequence.

R&K

Combined measurement

Refraction and keratometry in a combined measurement mode.

REF

Refraction

Objective refractive measurement with sphere, cylinder and axis output.

KRT

Keratometry

Corneal curvature, corneal power and corneal astigmatism.

CLBC

Contact lens base curve

A dedicated mode for measuring contact lens base curvature.

Familiar Controls, a Straightforward Sequence

ARK-8900 — Joystick alignment with automatic capture

Joystick alignment with automatic capture

Fine-position the instrument with the joystick while checking the alignment target on the color display. Automatic measurement starts when the alignment and focus conditions are met; manual measurement is also available.

ARK-8900 — Direct access through physical buttons

Direct access through physical buttons

Use the control panel to select measurement modes, review results and adjust measurement and print settings. Automatic fogging supports the refraction measurement sequence.

ARK-8900 — Results on paper, at the instrument

Results on paper, at the instrument

The integrated thermal printer provides a local printout. Select the print format and included data fields, with automatic printing after both eyes available in the instrument settings.

ARK-8900 Frequently Asked Questions

Is the ARK-8900 fully automatic?

The operator aligns and focuses the instrument with the joystick. Automatic capture is available once measurement conditions are met. It is not a fully automatic three-axis positioning system.

What does CLBC mode measure?

CLBC is the contact lens base-curve measurement mode. It does not refer to axial length measurement or full corneal topography.

Can the measurement results be printed?

Yes. The instrument includes a thermal printer with selectable print formats and configurable data fields.

ARK-710ARK-900RMK-8100FRS-810
View all productsRequest a quotation
Project Fit

Configurations & Options

The input voltage, supplied accessories and any serial connection requirements will be specified in the quotation. The refractive cylinder range is subject to factory confirmation.

Standard Accessory Set

Power cable, chinrest paper and positioning pins, printer paper, lens cloth, dust cover, fuses, rubber cap, model eye and user manual.

Final configurations, accessories and documentation are confirmed according to market and project requirements.

Technical Specifications

Model
ARK-8900
Measurement modes
R&K / REF / KRT / CLBC
Vertex distance
0 / 12.0 / 13.75 / 15.0 mm
Fixation target
Automatic fogging

Refraction

Sphere range (VD = 12 mm) −25.00–+22.00 D
Sphere display increments 0.12 / 0.25 D
Refractive axis / increment 1°–180° / 1°
Pupillary distance 45–85 mm; stated accuracy 0.5 mm
Minimum pupil diameter Ø2.0 mm

Keratometry

Corneal radius / increment 5.00–10.00 mm / 0.01 mm
Corneal power / increments 33.00–67.00 D / 0.12, 0.25 D
Corneal astigmatism / increments 0.00–−15.00 D / 0.12, 0.25 D
Corneal axis / increment 1°–180° / 1°
Corneal diameter 2.0–12.0 mm

Instrument

Display
5.7-inch TFT color LCD
Alignment and controls
Joystick alignment; physical buttons
Printing
Built-in thermal printer
Power-saving intervals
5 / 10 / 30 / 60 min
Supply frequency
50 / 60 Hz
Dimensions (W × D × H)
275 × 475 × 435–465 mm
Weight
18 kg

Discuss This Product with ENOCHTEC

Request specifications, configuration guidance or a distributor quotation for your market.

Request a Quote

Product Questions & Buying Guidance

Practical answers for clinics, hospitals, distributors and project buyers evaluating this product. Final configurations are confirmed for the destination market and intended workflow.

What information is needed for an accurate quotation?

Please share the destination country, intended clinical use, expected quantity, preferred configuration, local power standard and any required regulatory or tender documents. This lets ENOCHTEC prepare the most relevant technical and commercial proposal.

Yes. Available accessories, interface options, language, power standard, documentation and room integration can be reviewed for the destination market. Any change remains subject to the selected model, order quantity and regulatory requirements.

ENOCHTEC can support model selection, portfolio planning, technical documentation, product positioning and after-sales coordination for distributor and project orders. Training scope and service arrangements are confirmed according to the product and market.
